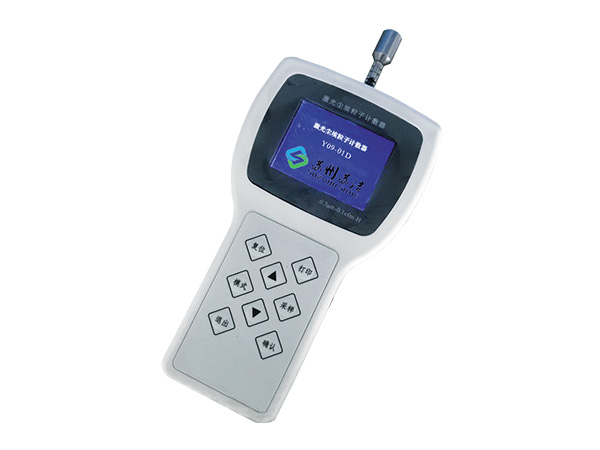

◆ Y09-01d laser dust particle counter is used to measure the number of dust particles in the unit volume of air in the clean environment.
It can directly detect the clean environment with a cleanliness level of 300000 to 10.
◆ Widely used in electronic, optical, chemical, food, cosmetics, medicine and health, biological products, aerospace and other sectors.
Feature Description:
◆ This instrument adopts the principle of light scattering. When the suspended particles in the air pass through the photosensitive area,
they scatter a certain proportion of the luminous flux to their particle size. After photoelectric conversion, amplification and
processing, the equivalent diameter and quantity of the collected particles are obtained.
◆ The instrument adopts semiconductor laser light source and LCD display. It has small volume, light weight, high detection accuracy,
simple and clear function operation, computer control, storage and printing of sampling results, and is very convenient for testing
clean environment.
Technical parameters:
Outline size | 130 * 220 * 45mm3 (w * D * h) |
Quality | 0.6kg |
Maximum power consumption | 8w |
Power supply | DC power supply 8.4v |
Particle size channel | 0.3、0.5、1、3、5、10（μm） |
Sampling flow rate | 2.83（L/ min） |
Environmental conditions for use | Temperature: 10-30 ℃ |
| Humidity: 20% - 75% | |
| Atmospheric pressure: 86kpa-106kpa | |
Allowable maximum sampling concentration | 35000 pieces / L (the particle size of dust shall not be less than 0.5 μ m), and the sampling air shall not contain corrosive gases such as acid and alkali |
Clean-down capability | ≤10min |
